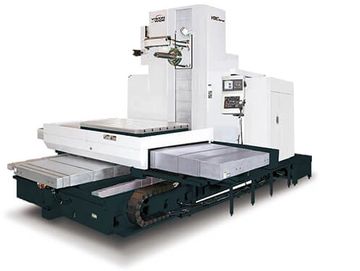

HORIZONTAL BORING MILLS
VISION WIDE
CNC Boring Mills
VBE-110 1250
Table Size - 49.21 x 49.21 in
Table Load - 11,023 lbs
X-Axis Travel - 62.99 in
Y-Axis Travel - 51.18 in
Z-Axis Travel - 51.18 in
W-Axis Travel - 21.65 in
Boring Spindle - 4.33 in
Spindle Speed - 3,500 RPM
VBE-110 1416
Table Size - 55.12 x 62.99 in
Table Load - 17,636 lbs
X-Axis Travel - 78.74 in
Y-Axis Travel - 62.99 in
Z-Axis Travel - 51.18 in
W-Axis Travel - 21.65 in
Boring Spindle - 4.33 in
Spindle Speed - 3,500 RPM
VBH-130 1416
Table Size - 55.12 x 62.99 in
Table Load - 22,046 lbs
X-Axis Travel - 78.74 in (op: 98.42 in)
Y-Axis Travel - 78.74 in (op: 98.42 in)
Z-Axis Travel - 59.05 in (op: 78.74 in)
W-Axis Travel - 27.55 in
Boring Spindle - 5.12 in
Spindle Speed - 3,000 RPM
VBH-130 1618
Table Size - 62.99 in x 70.86 in
Table Load - 44,092 lbs
X-Axis Travel - 78.74 in (op: 98.42 in)
Y-Axis Travel - 78.74 in (op: 98.42 in)
Z-Axis Travel - 59.05 in (op: 78.74 in)
W-Axis Travel - 27.55 in
Boring Spindle - 5.12 in
Spindle Speed - 3,000 RPM
VBH-130 1822
Table Size - 70.86 in x 86.61 in
Table Load - 44,092 lbs
X-Axis Travel - 118.11 in (op: 137.79 in)
Y-Axis Travel - 98.42 in (op: 118.11 in)
Z-Axis Travel - 59.05 in (op: 78.74 in)
W-Axis Travel - 27.55 in
Boring Spindle - 5.12 in
Spindle Speed - 3,000 RPM
More machine brands and machine models to be added in the coming days/weeks!
