VERTICAL LATHES
O-M LTD.
Vertical CNC Lathes

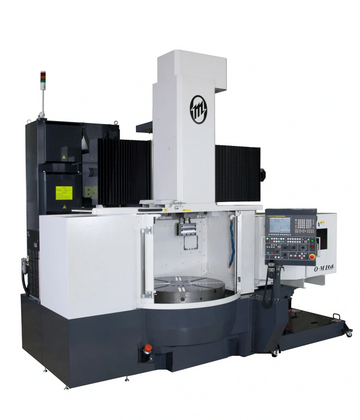

RT-915
Table Diameter - 36.02 in
Max Turning Dia. - 39.37 in
Max Swing - 43.31 in
Max Turning Height - 27.56 in
Max Workpiece Weight - 3,300 lbs
Tool Storage - 18 Tools
NEO-10EX II
Table Diameter - 43.31 in
Max Turning Dia. - 49.21 in
Max Swing - 55.12 in
Max Turning Height - 31.5 in
Max Workpiece Weight - 6,615 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -10EXII)
NEO-12EX II
Table Diameter - 49.21 in
Max Turning Dia. - 57.09 in
Max Swing - 62.99 in
Max Turning Height - 43.31 in
Max Workpiece Weight - 8,820 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -12EXII)
NEO-16EX
Table Diameter - 63 in
Max Turning Dia. - 78.74 in
Max Swing - 78.74 in
Max Turning Height - 59 in
Max Workpiece Weight - 17,630 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -16EX)
NEO-20EX
Table Diameter - 78.74 in
Max Turning Dia. - 98.43 in
Max Swing - 98.43 in
Max Turning Height - 78.74 in
Max Workpiece Weight - 33,075 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -20EX)
NEO-28EX
Table Diameter - 110.24 in
Max Turning Dia. - 118.11 in
Max Swing - 118.11 in
Max Turning Height - 78.74 in
Max Workpiece Weight - 44,100 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -28EX)
NEO-30/40DX
Table Diameter - 118.11 in
Max Turning Dia. - 157.48 in
Max Swing - 157.48 in
Max Turning Height - 98.43 in
Max Workpiece Weight - 44,100 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -30/40DX)
NEO-40/50DX
Table Diameter - 157.48 in
Max Turning Dia. - 196.85 in
Max Swing - 196.85 in
Max Turning Height - 118.11 in
Max Workpiece Weight - 88,200 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -40/50DX)
NEO-50/60DX
Table Diameter - 196.85 in
Max Turning Dia. - 236.22 in
Max Swing - 236.22 in
Max Turning Height - 118.11 in
Max Workpiece Weight - 88,200 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -50/60DX)
NEO-60/70DX
Table Diameter - 236.22 in
Max Turning Dia. - 275.59 in
Max Swing - 275.59 in
Max Turning Height - 118.11 in
Max Workpiece Weight - 110,250 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (Neo α -60/70DX)

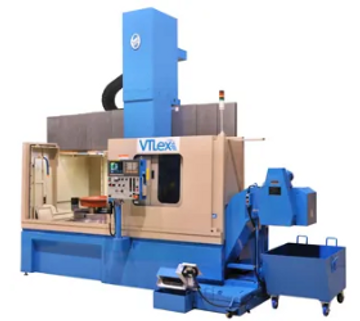

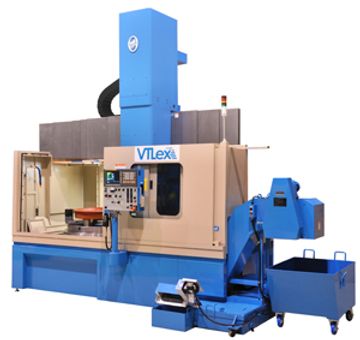

VTLex-800
Table Diameter - 31.50 in
Max Turning Dia. - 37.40 in
Max Swing - 43.31 in
Max Turning Height - 31.50 in
Max Workpiece Weight - 3,308 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-800M)
*Optional Pallet Changer (VTLex-800APC)

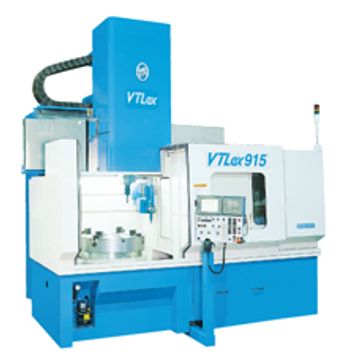

VTLex-915
Table Diameter - 36.02 in
Max Turning Dia. - 39.37 in
Max Swing - 49.21 in
Max Turning Height - 31.50 in
Max Workpiece Weight - 3,308 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-915M)
*Optional Pallet Changer (VTLex-915APC)
VTLex-1100
Table Diameter - 43.31 in
Max Turning Dia. - 53.15 in
Max Swing - 59.06 in
Max Turning Height - 31.50 in
Max Workpiece Weight - 4,410 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-1100M)
*Optional Pallet Changer (VTLex-1100APC)
VTLex-1250
Table Diameter - 49.21 in
Max Turning Dia. - 62.99 in
Max Swing - 62.99 in
Max Turning Height - 49.21 in
Max Workpiece Weight - 17,640 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-1250M)
*Optional Pallet Changer (VTLex-1250APC)
VTLex-1600
Table Diameter - 62.99 in
Max Turning Dia. - 78.74 in
Max Swing - 78.74 in
Max Turning Height - 62.99 in
Max Workpiece Weight - 22,050 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-1600M)
*Optional Pallet Changer (VTLex-1600APC)
VTLex-2000
Table Diameter - 78.74 in
Max Turning Dia. - 98.43 in
Max Swing - 98.43 in
Max Turning Height - 71.46 in
Max Workpiece Weight - 33,075 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-2000M)
*Optional Pallet Changer (VTLex-2000APC)
VTLex-2500
Table Diameter - 98.43 in
Max Turning Dia. - 118.11 in
Max Swing - 118.11 in
Max Turning Height - 87.21 in
Max Workpiece Weight - 44,100 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-2500M)
*Optional Pallet Changer (VTLex-2500APC)
VTLex-3000
Table Diameter - 118.11 in
Max Turning Dia. - 137.80 in
Max Swing - 137.80 in
Max Turning Height - 87.21 in
Max Workpiece Weight - 44,100 lbs
Tool Storage - 12 Tools
*Optional C-Axis & Milling (VTLex-3000M)
*Optional Pallet Changer (VTLex-3000APC)
More machine brands and machine models to be added in the coming days/weeks!
NT-2500 SHOWROOM SPECIAL
Chuck Size - 10 in
Bar Capacity - 2.95 in
Max Turning Dia. - 12.59 in
Max Turning Length - 17.59 in
$61,500.00 USD
