HORIZONTAL LATHES
TAKISAWA JAPAN
Horizontal & Vertical CNC Lathes
TCC-1100
Chuck Size - 6 in
Bar Capacity - 1.65 in
Max Turning Dia. - 8.62 (T8) / 6.7 (T12) in
Max Turning Length - 6.73 in
*Optional MT.3 Tailstock
TCC-2100
Chuck Size - 8 in
Bar Capacity - 2.0 in
Max Turning Dia. - 13.75 (T8) / 12.6 (T12) in
Max Turning Length - 7.52 / 11.45 in
*Optional MT.4 Tailstock
TCN-2100(CM)
Chuck Size - 8 in
Bar Capacity - 2.0 in
Max Turning Dia. - 15.9 (T8) / 13.39 (T12) in
Max Turning Length - 11.81 / 23.63 in
*Optional MT.4 Tailstock
*Optional C-Axis & Milling (TCN-2100CM)
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 7.5/5 HP
Rotary Tool Collet Size - ER20
Minimum C-Axis Index Angle - .001 degree

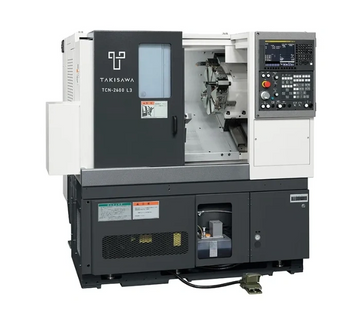

TCN-2600(CM)
Chuck Size - 10 in
Bar Capacity - 2.92 / 3.5 in
Max Turning Dia. - 15.9 in
Max Turning Length - 9.85 / 21.66 in
*Optional MT.5 Tailstock
*Optional C-Axis & Milling (TCN-2600CM):
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 7.5/5 HP
Rotary Tool Collet Size - ER20
Minimum C-Axis Index Angle - .001 degree
TCN-3500(CM)
Chuck Size - 10 / 12 in
Bar Capacity - 3.15 / 4.25 in
Max Turning Dia. - 18.0 in
Max Turning Length - 20.07 / 39.76 in
*Optional MT.5 Tailstock
*Optional C-Axis & Milling (TCN-3500CM):
Rotary Tool - 3,600 RPM
Rotary Tool Motor - 14.75/5 HP
Rotary Tool Collet Size - ER32
Minimum C-Axis Index Angle - .001 degree
TS-2000YS
Chuck Size - 6 in (Main) & 6 in (Sub)
Bar Capacity - 2.01 in
Max Turning Dia. - 14.57 in
Max Turning Length - 22.24 in
Y-Axis Travel - +2.76 ~ -1.97 in
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 10/5 HP
Rotary Tool Collet Size - ER40
Minimum C-Axis Index Angle - .001 degree
*Optional MT.4 Tailstock in Lieu of Sub Spindle
TS-3000YS
Chuck Size - 8 in (Main) & 6 in (Sub)
Bar Capacity - 2.64 in
Max Turning Dia. - 14.57 in
Max Turning Length - 21.65 in
Y-Axis Travel - +2.76 ~ -1.97 in
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 10/5 HP
Rotary Tool Collet Size - ER40
Minimum C-Axis Index Angle - .001 degree
*Optional MT.4 Tailstock in Lieu of Sub Spindle
TS-4000YS
Chuck Size - 10 in (Main) & 6 in (Sub)
Bar Capacity - 3.23 in
Max Turning Dia. - 14.57 in
Max Turning Length - 29.53 in
Y-Axis Travel - +2.76 ~ -1.97 in
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 10/5 HP
Rotary Tool Collet Size - ER40
Minimum C-Axis Index Angle - .001 degree
*Optional MT.5 Tailstock in Lieu of Sub Spindle

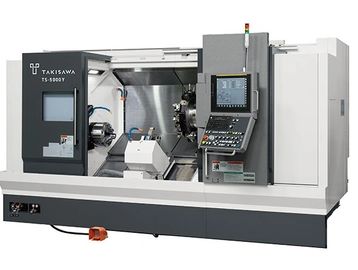

TS-5000YS
Chuck Size - 12 in (Main) & 8 in (Sub)
Bar Capacity - 4.02 in
Max Turning Dia. - 14.57 in
Max Turning Length - 51.18 in
Y-Axis Travel - +2.76 ~ -1.97 in
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 10/5 HP
Rotary Tool Collet Size - ER40
Minimum C-Axis Index Angle - .001 degree
*Optional MT.6 Tailstock in Lieu of Sub Spindle

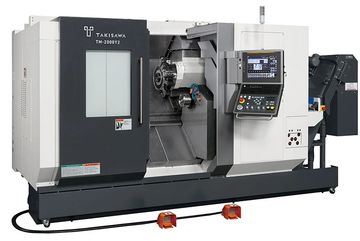

TM-2000Y2
Chuck Size - 6 in (Main) & 6 in (Sub)
Bar Capacity - 2.00 in
Max Turning Dia. - 8.46 in
Max Turning Length - 25.19 in
Upper Turret Y-Axis - +1.77 ~ -1.77 in
Lower Turret Y-Axis - +1.77 ~ -1.77 in
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 7.5/5 HP
Rotary Tool Collet Size - ER25
Minimum C-Axis Index Angle - .001 degree
TM-3000Y2
Chuck Size - 8 in (Main) & 6 in (Sub)
Bar Capacity - 2.55 in
Max Turning Dia. - 8.46 in
Max Turning Length - 24.40 in
Upper Turret Y-Axis - +1.77 ~ -1.77 in
Lower Turret Y-Axis - +1.77 ~ -1.77 in
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 7.5/5 HP
Rotary Tool Collet Size - ER25
Minimum C-Axis Index Angle - .001 degree
TM-4000Y2
Chuck Size - 8 in (Main) & 8 in (Sub)
Bar Capacity - 3.23 in
Max Turning Dia. - 8.46 in
Max Turning Length - 31.50 in
Upper Turret Y-Axis - +2.75 ~ -1.96 in
Lower Turret Y-Axis - +1.18 ~ -1.96 in
Rotary Tool - 6,000 RPM
Rotary Tool Motor - 7.5/5 HP
Rotary Tool Collet Size - ER32
Minimum C-Axis Index Angle - .001 degree
TMX-2000S
Chuck Size - 8 in (Main) & 8 in (Sub)
Bar Capacity - 2.55 in
Max Turning Dia. - 19.68 in
Max Turning Length - 24.01 in
B-Axis Swivel Range - +115 ~ -115 degrees
Spindle Taper - Capto C6 or HSK63
Spindle Speed - 12,000 RPM
Tool Storage - 40 or 80 Tools
Minimum C-Axis Index Angle - .001 degree
*Optional MT.4 Tailstock in Lieu of Sub Spindle (TMX-2000)

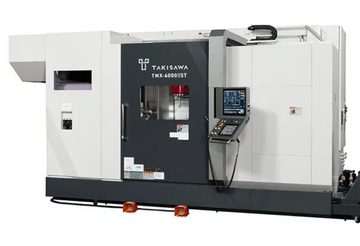

TMX-4000 II S
Chuck Size - 10 in (Main) & 10 in (Sub)
Bar Capacity - 3.23 in
Max Turning Dia. - 19.68 in
Max Turning Length - 59.05 in
B-Axis Swivel Range - +115 ~ -115 degrees
Spindle Taper - Capto C6 or HSK63
Spindle Speed - 12,000 RPM
Tool Storage - 40, 80, or 120 Tools
Minimum C-Axis Index Angle - .001 degree
*Optional MT.4 Tailstock in Lieu of Sub Spindle (TMX-4000)
**Optional Lower Turret - 12 Station
(Max Turning Dia. w/Lower Turret -
13.77 in)

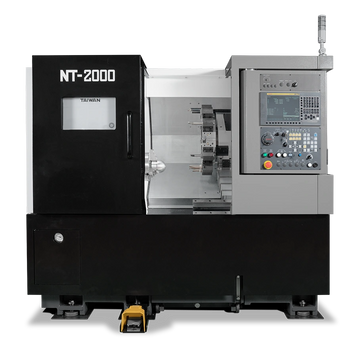

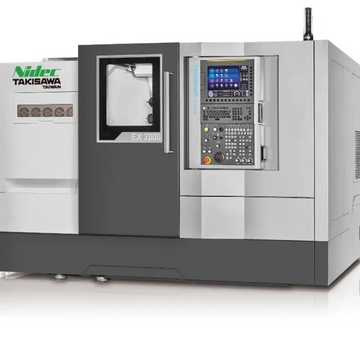

TAKISAWA TAIWAN
Horizontal & Vertical CNC Lathes
NEX-105
Chuck Size - 6 in
Bar Capacity - 1.65 in
Max Turning Diameter - 6.7 in
Max Turning Length - 7.3 in
*Optional MT.3 Tailstock
NEX-106
Chuck Size - 6 in
Bar Capacity - 1.69 in
Max Turning Dia. - 9.45 in
Max Turning Length - 13.78 in
*Optional MT.4 Tailstock

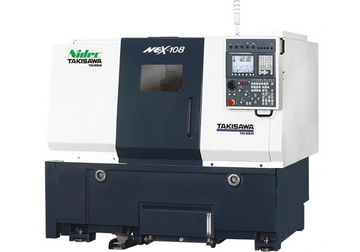

NEX-108
Chuck Size - 8 in
Bar Capacity - 2.5 in
Max Turning Dia. - 12.6 in
Max Turning Length - 18.94 in
*Optional MT.4 Tailstock
NEX-108 M/Y
Chuck Size - 8 in
Bar Capacity - 2.5 in
Max Turning Dia. - 10.2 in
Max Turning Length - 17.5 in
Rotary Tool - 4,000 rpm
Rotary Tool Motor - 7.5/5 HP
Rotary Tool Collet Size - ER32
Minimum C-Axis Index Angle - .001 degree
Tailstock - MT.4 (M) / MT.5 (Y)
M = Milling
Y = Y-Axis
Y-Axis Travel - +1.6 ~ -1.6 in

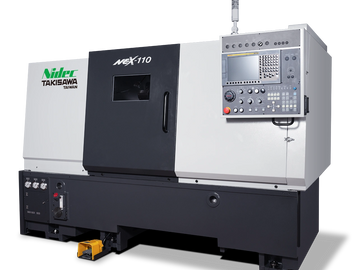

NEX-110
Chuck Size - 8 in
Bar Capacity - 2.5 in
Max Turning Dia. - 12.6 in
Max Turning Length - 18.94 in
*Optional MT.4 Tailstock
NEX-110 M/Y
Chuck Size - 10 in
Bar Capacity - 2.95 in
Max Turning Dia. - 13.8 in
Max Turning Length - 24.8 in
Rotary Tool - 4,000 rpm
Rotary Tool Motor - 7.5/5 HP
Rotary Tool Collet Size - ER32
Minimum C-Axis Index Angle - .001 degree
Tailstock - MT.5
M = Milling
Y = Y-Axis
Y-Axis Travel - +2 ~ -2 in
.png/:/cr=t:13.28%25,l:0%25,w:100%25,h:77.48%25/rs=w:360,h:180,cg:true)

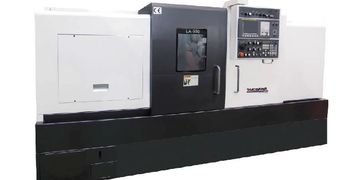

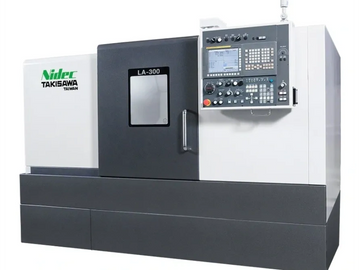

LA-300
Chuck Size - 12 in
Bar Capacity - 3.54 in
Max Turning Dia. - 17.72 in
Max Turning Length - 42.76 in
Tailstock - MT.5
*Optional C-Axis & Milling (LA-350M)

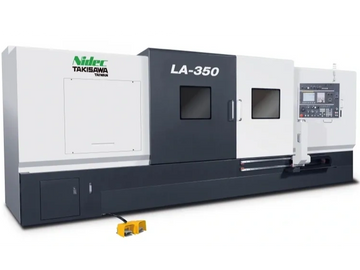

LA-350
Chuck Size - 12 / 15 in
Bar Capacity - 4.53 in
Max Turning Dia. - 21.65 in
Max Turning Length - 32.68 / 64.17 / 89.3 in
Tailstock - MT.5
*Optional C-Axis & Milling (LA-350M)
LA-450
Chuck Size - 15 / 18 in
Bar Capacity - 5.91 in
Max Turning Dia. - 21.65 in
Max Turning Length - 30.75 / 62.24 / 87.4 in
Tailstock - MT.5
*Optional C-Axis & Milling (LA-450M)
LS-800
Chuck Size - 15 / 18 / 20 in
Bar Capacity - 3.5 / 4.1 / 7.1 in
Max Turning Dia. - 29.9 in
Max Turning Length - 43 / 62.7 / 82.3 / 121.6in
Tailstock - MT.5
*Optional C-Axis & Milling (LS-800M)
**Optional Y-Axis (LS-800Y)
LS-1000
Chuck Size - 20 / 24 in
Bar Capacity - 7.1 in
Max Turning Dia. - 30.7 in
Max Turning Length - 40.6 / 60.3 / 80 / 119.4 in
Tailstock - MT.5
*Optional C-Axis & Milling (LS-1000M)
More machine brands and machine models to be added in the coming days/weeks!
