*SPECIAL PROMOTION*
2012 Takisawa Taiwan LS-1000
Chuck Size - 24 in
Bar Capacity - 7.08 in
Max Turning Dia. - 35.4 in
Max Turning Length - 119.3 in
MT.6 Tailstock
Automatic Steady Rest Prep
Chip Conveyor
*STOCK IN HOUSTON*
*SPECIAL PROMOTION*
2013 Takisawa TMT-4500S
Chuck Size - 18 in (Main) & 18 in (Sub)
Bar Capacity - 7.12 in
Max Turning Dia. - 24.75 in
Max Turning Length - 78.75 in
B-Axis Tool Spindle
Spindle Taper - Capto C6
Spindle Speed - 12,000rpm
Fanuc 31iS
90 Tool ATC
Automatic Steady Rest (35mm - 245mm)
Marposs Tool Measuring
Coolant Through Spindle
Chip Conveyor
*STOCK IN HOUSTON*
Takisawa TS-4000YS
Chuck Size - 10 in (Main) & 6 in (Sub)
Bar Capacity - 3.23 in
Max Turning Dia. - 14.57 in
Max Turning Length - 29.53 in
Y-Axis Travel - +2.76 ~ -1.97 in
Fanuc 32i-B Control
Tool Setter
Parts Catcher
Chip Conveyor
*STOCK IN HOUSTON*
Maple M-One 20 12K
Table Size - 51.18 x 23.62 in
X-Axis Travel - 47.24 in
Y-Axis Travel - 23.62 in
Z-Axis Travel - 23.62 in
Spindle Taper - CAT40
Spindle Speed - 12,000rpm
Spindle Motor - 25HP
Fanuc 0i-MF Plus
Direct Drive Spindle
AICC II 200 Block Look Ahead
290 PSI CTS with Filtration
30 Tool ATC
Chip Conveyor
*STOCK IN MISSISSAUGA*
Maple M-One 20 10K
Table Size - 51.18 x 23.62 in
X-Axis Travel - 47.24 in
Y-Axis Travel - 23.62 in
Z-Axis Travel - 23.62 in
Spindle Taper - CAT40
Spindle Speed - 10,000rpm
Spindle Motor - 25HP
Fanuc 0i-MF Plus
Belt Drive Spindle
AICC II 200 Block Look Ahead
290 PSI CTS with Filtration
30 Tool ATC
Chip Conveyor
*STOCK IN MISSISSAUGA*
O-M RT-915
Year: 2024
Table Diameter - 36.02 in
Max Turning Dia. - 39.37 in
Max Swing - 43.31 in
50HP Motor, 18 Tool ATC, X Axis Scale, Tool Presetter
*3 MACHINES IN STOCK IN USA*
O-M Neo-10EX II
Year: 2024
Table Diameter - 43.31 in
Max Turning Dia. - 49.21 in
Max Swing - 55.12 in
50HP Motor, 16 Tool ATC, X&Z Axis Scales, Tool Presetter, RMP Spinlde Probe, Max Load 6,615lbs
*STOCK IN USA*
O-M Neo-12EX/APC
Year: 2013
Table Diameter - 49.21 in
Max Turning Dia. - 55.09 in
Max Swing - 62.99 in
APC Machine with 2 x Pallets, 50HP Motor, 12 Tool ATC, X Axis Scale, Tool Presetter, Max Load: 4,400lbs (per pallet)
*STOCK IN HOUSTON*

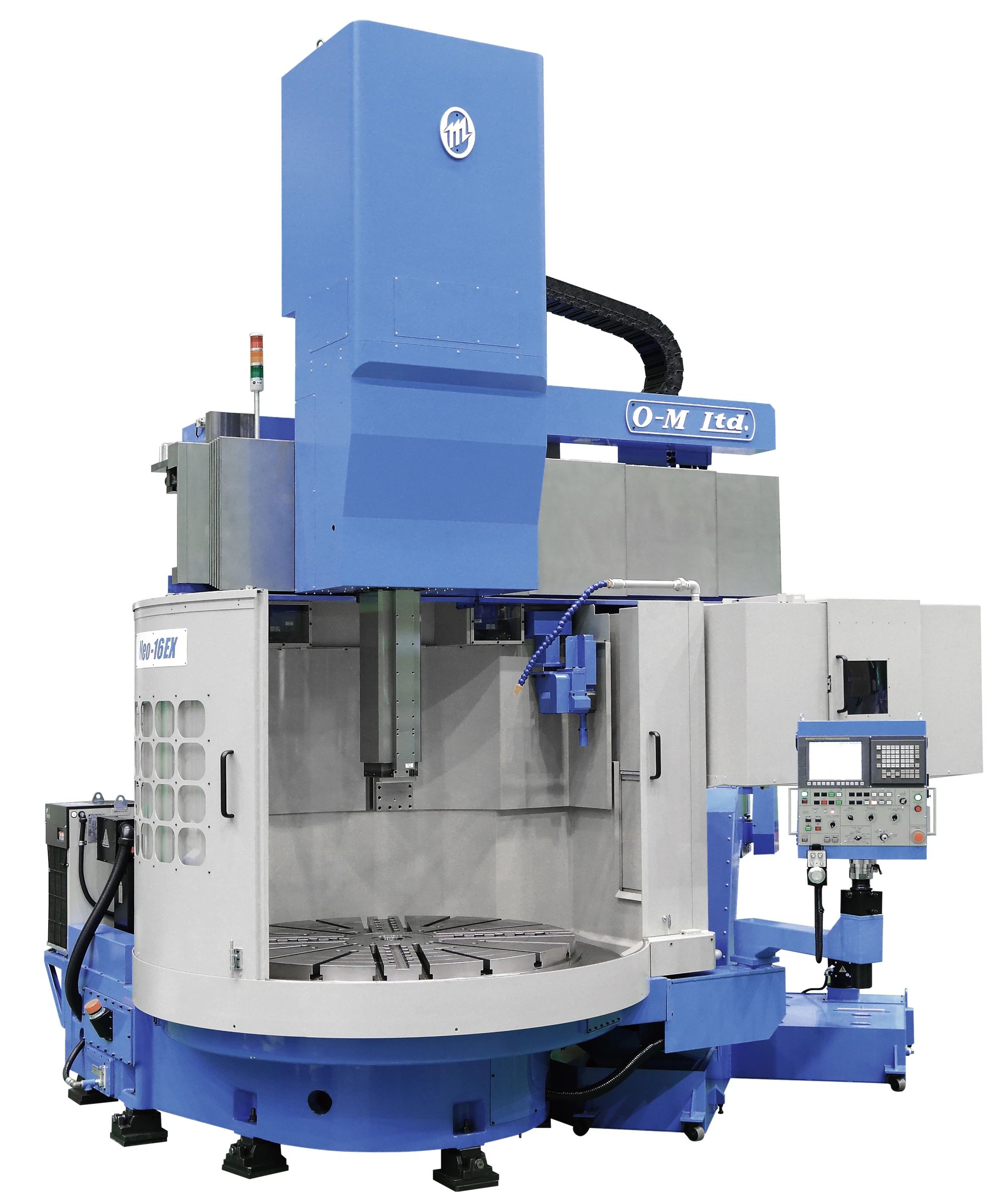

O-M Neo(α)-16EX BCD
Year: 2025
Table Diameter - 63 in
Max Turning Dia. - 78.74 in
Max Swing - 78.74 in
C-Axis & Milling, 50HP Motor, 16 Tool ATC, X & Z Axis Scale, Tool Presetter, RMP Spindle Probe
*STOCK IN HOUSTON*
O-M Neo-20EX
Year: 2025
Table Diameter - 78.74 in
Max Turning Dia. - 98.43 in
Max Swing - 98.43 in
75HP Motor, 12 Tool ATC, X Axis Scale
*STOCK IN USA*
