5-AXIS MILLS
VISION WIDE
5-Axis Universal Machining Centers
ASM-1012
Table Size - Ø 39.37 in
X-Axis Travel - 39.37 in
Y-Axis Travel - 49.60 in
Z-Axis Travel - 41.33 in
B-Axis Head Swivel - +180° ~ -30°
C-Axis Rotation - 360°
Spindle Taper - HSK100A
Spindle Speed - 10,000 rpm
*Optional Turning (ASM-1012 FD)
ASM-1212
Table Size - Ø 47.24 in
X-Axis Travel - 49.21 in
Y-Axis Travel - 49.60 in
Z-Axis Travel - 41.33 in
B-Axis Head Swivel - +180° ~ -30°
C-Axis Rotation - 360°
Spindle Taper - HSK100A
Spindle Speed - 10,000 rpm
*Optional Turning (ASM-1212 FD)
ASM-1612
Table Size - Ø 59.05 in
X-Axis Travel - 63.77 in
Y-Axis Travel - 49.60 in
Z-Axis Travel - 41.33 in
B-Axis Head Swivel - +180° ~ -30°
C-Axis Rotation - 360°
Spindle Taper - HSK100A
Spindle Speed - 10,000 rpm
*Optional Turning (ASM-1612 FD)
JTEKT
5-Axis Horizontal Machining Centers
FH630SX-i
Pallet Size - 24.8 x 24.8 in (x 2)
X-Axis Travel - 31.50 in
Y-Axis Travel - 33.46 in
Z-Axis Travel - 41.33 in
C-Axis Head Swivel - +20° ~ -210°
B-Axis Rotation - 360°
Spindle Taper - CAT50
Spindle Speed - 15,000 rpm
FA1050S
Pallet Size - 41.3 x 41.3 in (x 2)
X-Axis Travel - 59.10 in
Y-Axis Travel - 55.10 in
Z-Axis Travel - 45.20 in
A-Axis Trunnion Tilt - +15° ~ - 100°
B-Axis Rotation - 360°
FH1250SX
Pallet Size - 49.2 x 49.2 in (x 2)
X-Axis Travel - 86.60 in
Y-Axis Travel - 63 in
Z-Axis Travel - 72.80 in
A-Axis Head Tilt - +45° ~ - 100°
B-Axis Rotation - 360°
FAGIMA
5-Axis Column Travelling Machining Centers
JAZZ R
Tilting Rotary Table - 23.62 x 23.62 in
X-Axis Travel - 29.52 in
Y-Axis Travel - 23.62 in
Z-Axis Travel - 21.65 in
B-Axis Trunnion Tilt - +/- 110 degrees
C-Axis Rotation - 360 degrees
Spindle Taper - CAT40, BT40, HSK63
Spindle Speed - 12000, 16000, 24000 RPM
JAZZ M
Fixed Table - 31.49 x 23.62 in
Tilting Rotary Table - 23.62 x 23.62 in
X-Axis Travel - 61.02 in
Y-Axis Travel - 23.62 in
Z-Axis Travel - 21.65 in
B-Axis Trunnion Tilt - +/- 110 degrees
C-Axis Rotation - 360 degrees
Spindle Taper - CAT40, BT40, HSK63
Spindle Speed - 12000, 16000, 24000 RPM
JAZZ L
Fixed Table - 49.21 x 23.62 in
Tilting Rotary Table - 23.62 x 23.62 in
X-Axis Travel - 78.74 in
Y-Axis Travel - 23.62 in
Z-Axis Travel - 21.65 in
B-Axis Trunnion Tilt - +/- 110 degrees
C-Axis Rotation - 360 degrees
Spindle Taper - CAT40, BT40, HSK63
Spindle Speed - 12000, 16000, 24000 RPM
KREOS
X-Axis Travel - 106.29 in or 157.48 in
Y-Axis Travel - 32.67 in
Z-Axis Travel - 33.46 in
B-Axis Head Tilt - +/- 120 degrees
C-Axis Rotation - 360 degrees
Spindle Taper - CAT40, BT40, HSK63
Spindle Speed - 12000, 16000, 24000 RPM
DERBY
X-Axis Travel - 78.74 in, 118.11 in, or 157.48 in
Y-Axis Travel - 39.37 in
Z-Axis Travel - 39.37 in
B-Axis Head Tilt - +/- 120 degrees
C-Axis Rotation - 360 degrees
Spindle Taper - CAT40, BT40, HSK63
Spindle Speed - 12000, 16000, 24000 RPM

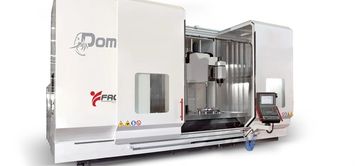

DOMINUS
X-Axis Travel - 157.48 in, 196.85, or 236.22
Y-Axis Travel - 47.24 in
Z-Axis Travel - 39.37 in
B-Axis Head Tilt - +/- 120 degrees
C-Axis Rotation - 360 degrees
Spindle Taper - CAT50, BT50, HSK100
Spindle Speed - 8000, 12000 RPM
